LITHIUM BATTERIES

Subcategories

•

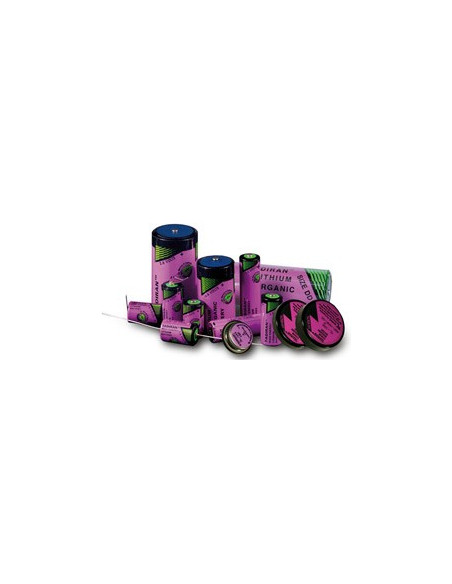

  LiSOCl2 (LTC) batteries

  LiSOCl2 (LTC) batteries

•

  Lithium metal-oxide...

  Lithium metal-oxide batteries (TLM series)

  Compact batteries for very high current pulse applications

  The TLM technology has been developed recently for applications requiring high power discharge after a long storage time, e.g. as a back up battery for emergency call devices in automotive telematic systems.

  Major Advantages of TLM-High-Power-Batteries:

  • High voltage 4.0 V

  • Very high pulse current capability

  • Immediate response, no passivation effect

  • Wide operating temperature range (-40 °C to +85 °C)

  • High reliability (hermetic laser sealing, glass-to-metal seal)

  • Outstanding storage capability (up to 10 years and more)

  • Recognized safety (UL)

  • Low self discharge (less than 3 % per year)





•

  Flat Lithium Batteries...

  Flat Lithium Batteries (TLH Series)

  Tadiran TLH Series lithium thionyl chloride cells are ideal for deployment in extended temperature applications, including automotive (tire pressure monitoring, engine sensors, windshield-mounted devices), medical (autoclave sterilization), industrial (machinery-mounted sensors, utility metering, remote sensors), military and aerospace applications.

  Product features include:

  • - Higher voltage (3.6V)

  • - 2X the energy density of other leading chemistries

  • - Wider operating temperature (-55°C to +125°C)

  • - Extended service life of 20+ years

  • - Small form factor

  • - Glass-to-metal hermetical seal (not crimped elastomer gasket)

  Tadiran TLH Series lithium thionyl chloride batteries are available in standard cell sizes, including 1/2AA, 2/3AA, AA, C, D and DD cylindrical cells, wafer cells, and custom configurations and battery packs. These batteries are ISO-9001:2000 certified and UL-recognized, and meet RoHS lead-free, WEEE EC, and REACH directives.

•

  PulsesPlus lithium...

  PulsesPlus lithium batteries (TLP series)

  For high current pulse applications

  PulsesPlus-Batteries are ideal for applications requiring long life and high energy under high current pulse requirements. These applications include:

  • - Emergency roadside assistance systems

  • - Asset, container and cargo tracking devices and locating devices

  • - Stand-alone equipment using GSM and GPS technologies

  • - AMR utility meters, remote meter reading

  • - Sonar buoys, oceanographic equipment

  • - RFID devices, toll tags, transponders

  • - Communications equipment

  • - Emergency and medical devices

  PulsesPlus-Batteries are available in a wide variety of configurations (cylindrical and prismatic battery packs). PulsesPlus-Batteries feature a primary bobbin type cell and a unique hermetically sealed Hybrid Layer Capacitor, which offers outstanding performance advantages, including:

  - High and stable voltage 3.6 V (optional 3.9 V)

  - High pulse current capability

  - No passivation effect

  - More capacity (up to 19 Ah per D size cell)

  - Wide operating temperature range (-40 °C to +85 °C)

  - High reliability (hermetic laser sealing, glass-to-metal seal)

  - Outstanding storage capability (up to 10 years)

  - Recognized safety (UL)

  - Very low self discharge (less than 2 % per year)

•

  Tadiran rechargeable...

  Tadiran rechargeable lithium-ion batteries (TLI series)

  RECHARGEABLE - For long-term use in harsh environments

  The TLI series is specifically designed for long-term use in harsh environments and represents an important breakthrough in rechargeable lithium-ion battery technology.

  Standard rechargeable lithium-ion cells have inherent drawbacks, including short operating life (maximum 5 years), low maximum cycle life (1000 cycles), high self-discharge (up to 60 % per year), and limited temperature range (0 °C to 60 °C) with no possibility of charging at low and high temperatures.

  By contrast, TLI series batteries utilize technology found in Tadiran’s patented hybrid layer capacitor (HLC), which stores the high current pulses required for two-way wireless communications. Tadiran’s technology has been field-proven in millions of cells to deliver 25+ year service life. TLI series batteries modify this technology to deliver reliable, long-term performance under extreme environmental conditions.

  Characteristics:

  - wider operating temperature (– 40 °C to 85 °C, with short term storage up to 90 °C)

  - ability to deliver high current pulses (up to 5A)

  - low self-discharge rate (less than 5 % per year)

  - up to 5 times more life cycles (5000 full cycles)

  - longer operating life (10 years)

  - charging possible at extreme temperatures (10 hour rate)

  - glass-to-metal seal

  TLI Series cells can be recharged using DC power or can be used in conjunction with photovoltaic solar systems or other energy harvesting devices to deliver reliable long-term power. Please refer to the TLI guidelines which are available for download.





•

  PulsesPlus super...

  PulsesPlus super capacitors (series HLC)

  Hybrid Layer Capacitors for use in PulsesPlus-Batteries

  Hybrid Layer Capacitors are a kind of rechargeable battery. They are used as a capacitor in PulsesPlus batteries, where they are connected in parallel to Tadiran Lithium Batteries. The electrodes of HLC’s comprise lithium intercalation compounds. They have low impedance and can deliver high current pulses. The performance and reliability properties of HLC’s have been carefully optimized to match those of Tadiran Lithium Batteries. The result is a battery with a maximum of both energy and power density for stand alone use of up to 25 years

  HLC’s are normally charged to 3.6 V, optionally to 3.9 V.
